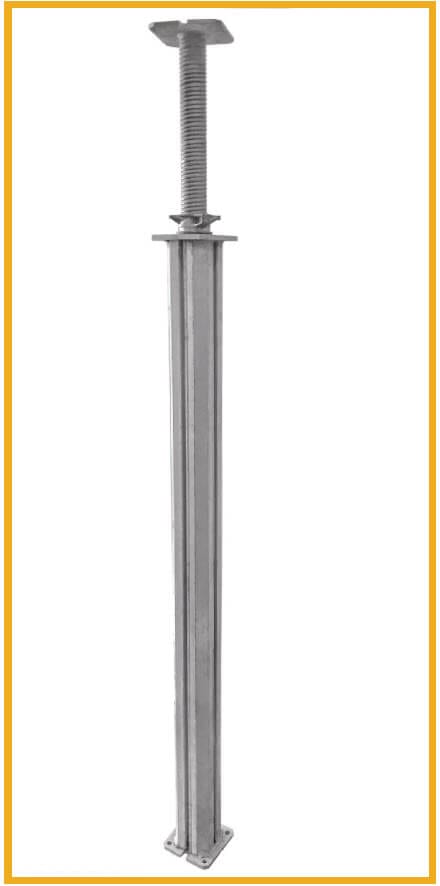

Aluminum Dynamic Post Shores
Strength and safety are two important aspects of a shoring system. It is essential to have competent support. EDC Dynamic Post Shores provide a safe 20,000-pound vertical load and consist of lightweight aluminum outer shells plus galvanized steel screw jacks.

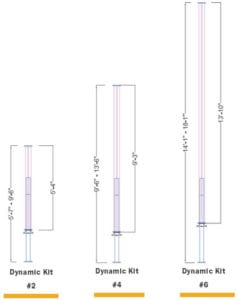

Dynamic post shore load capacity
|Size||Weight (lbs)||Closed||Open||Capacity||Factor of Safety|
|#2 Dynamic||60||5'-7"||9'-6"||25000||18000||2.5 : 1.0|
|#4 Dynamic||80||9'-6"||13'-6"||25000||17000||2.5 : 1.0|
|#6 Dynamic||103||14'-1"||18'-1"||20000||18000||2.5 : 1.0|
For more information, download the Post Shores brochure:
To order or for more information, contact us today. We look forward to helping you with your reinforced concrete construction project.
